I. Technical Structure and Design Standards
The design of European extension cords must strictly adhere to the following technical specifications:

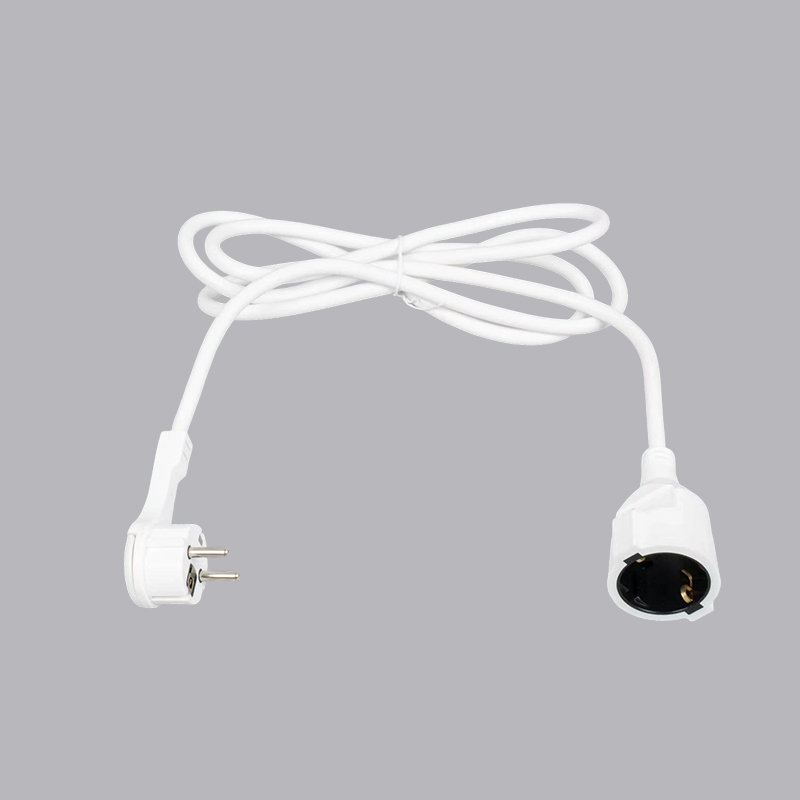

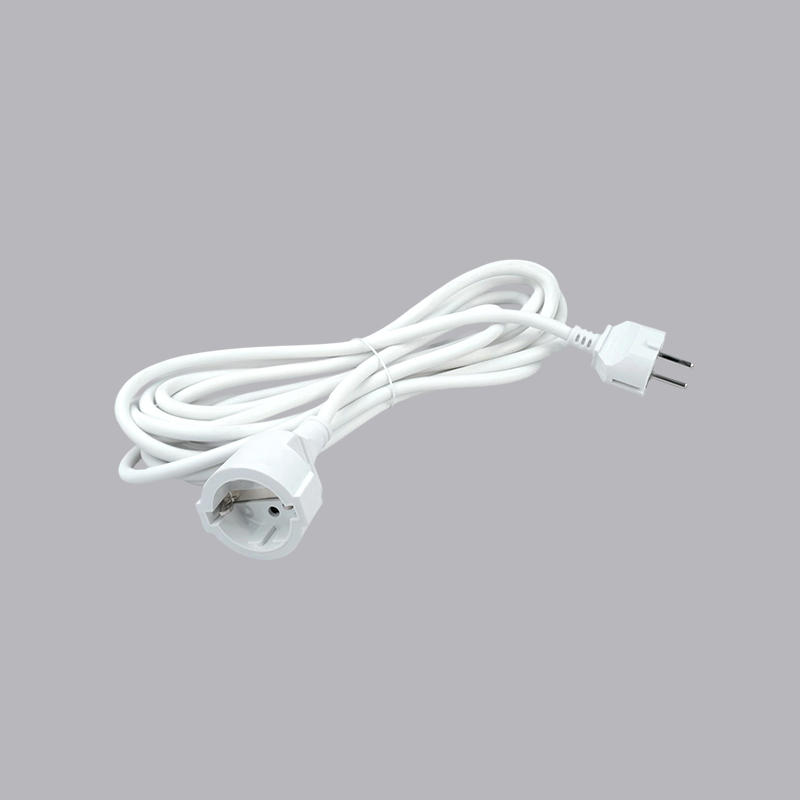

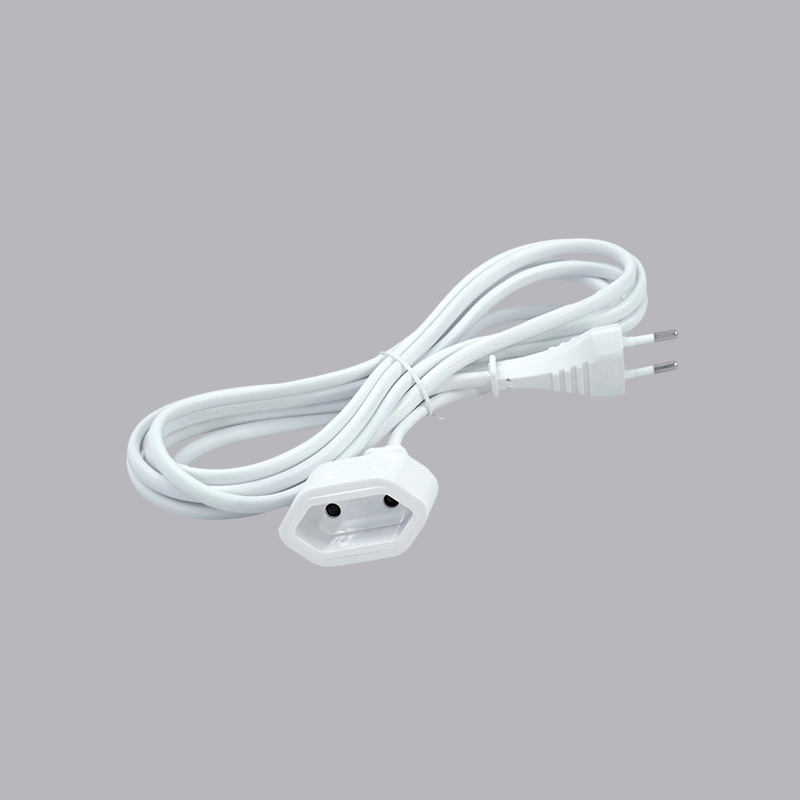

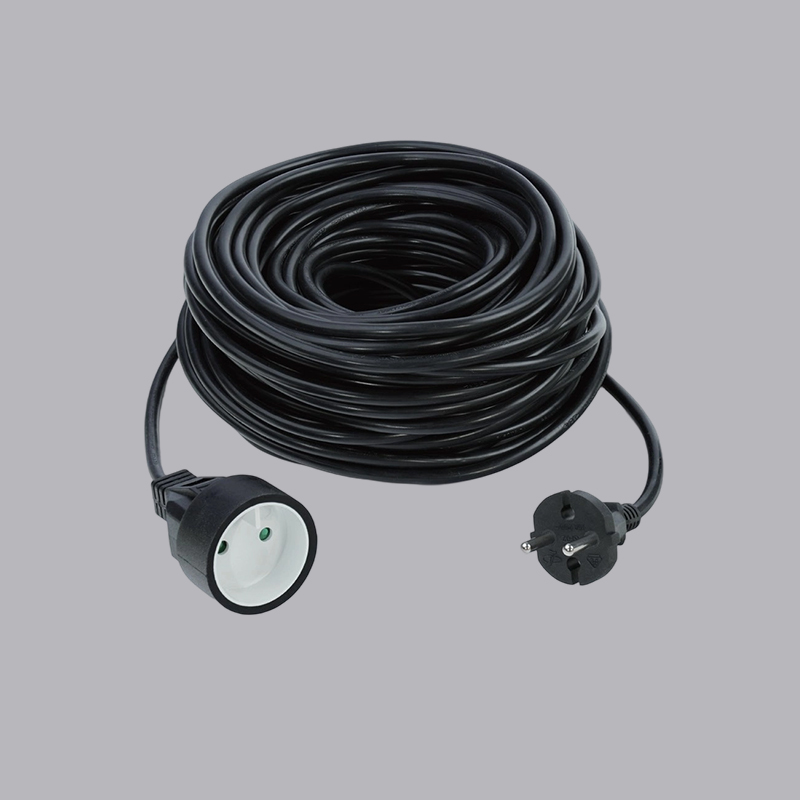

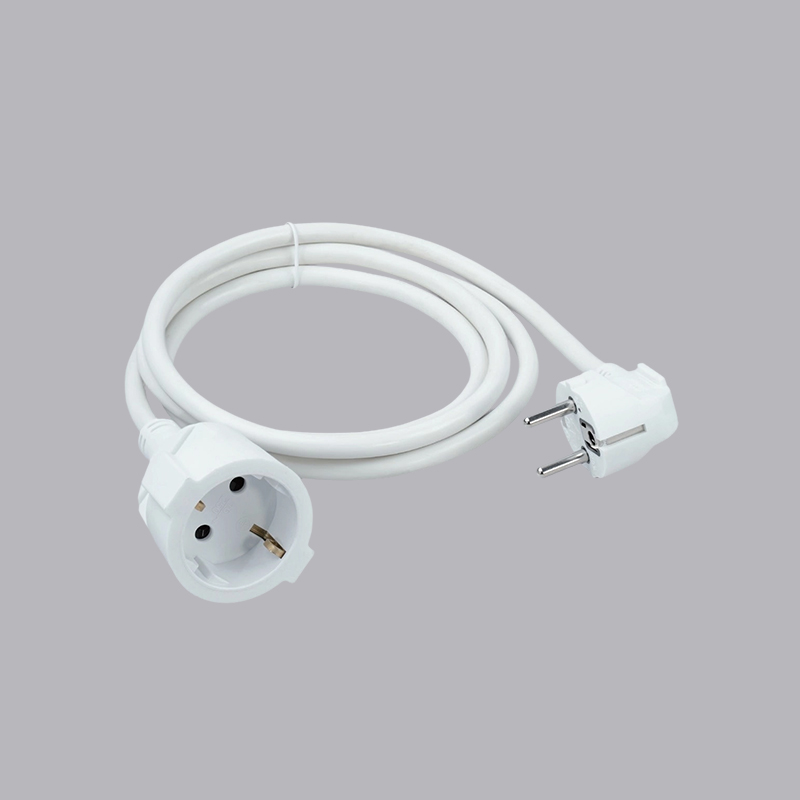

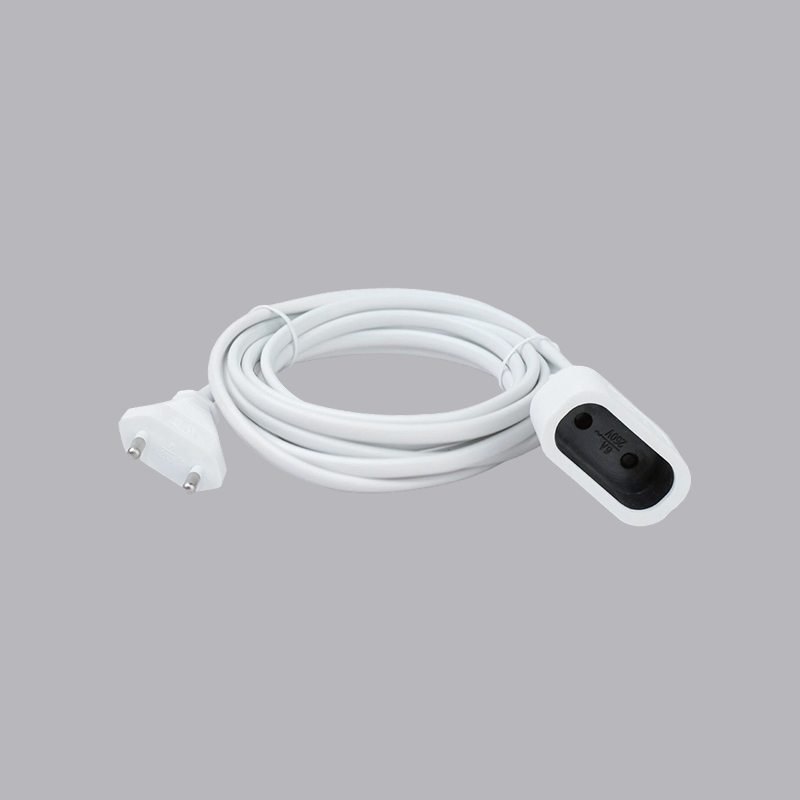

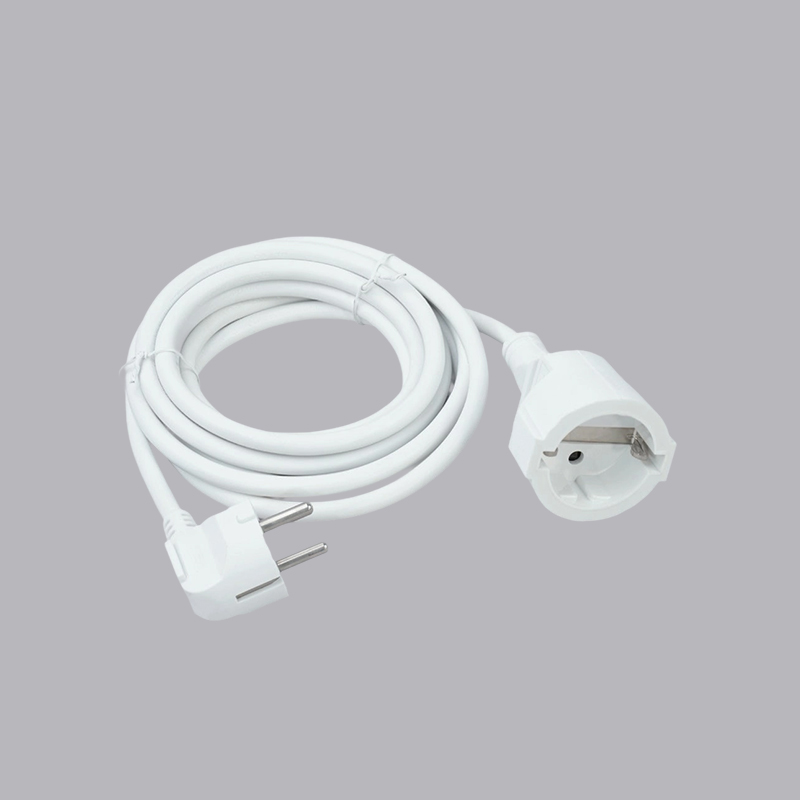

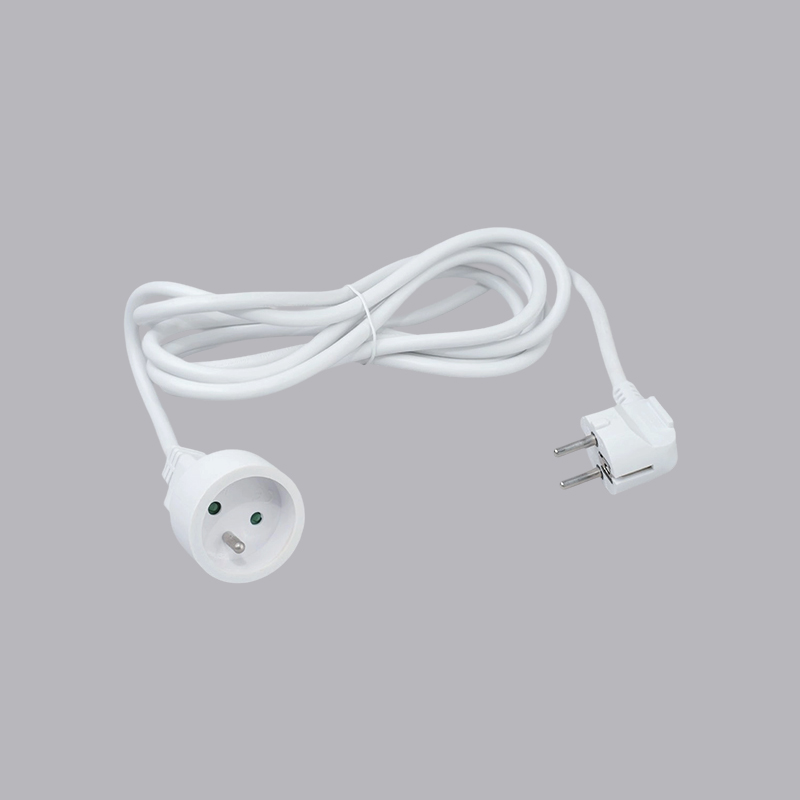

Plug and Socket Interface
European plugs typically conform to the CEE 7/7 standard (compatible with German Schuko and French E/F types). They feature cylindrical pins with a diameter of 4.8mm and a length of 19mm, and a spring contact on the grounding side. The socket interface must meet EN 50075 (non-grounded) or EN 50077 (grounded) standards to ensure compatibility with common European electrical appliances.
Cable Specifications and Conductivity
The core conductor must be oxygen-free copper (OFC) with a conductivity of 100% IACS (International Annealed Copper Standard). Common cross-sectional areas include:
0.75mm² (rated current 10A, power 2300W)
1.5mm² (rated current 16A, power 3680W)
2.5mm² (rated current 25A, power 5750W)
The insulation is typically made of polyvinyl chloride (PVC) or low-smoke zero-halogen (LSZH) material and is temperature-resistant from -15°C to 70°C.
Enclosure Protection Rating
According to IEC 60529, indoor extension cords must meet IP20 (protection against electric shock), while outdoor products must meet IP44 (splashproof) or IP67 (dustproof and waterproof).
II. Material Science and Safety Characteristics
The material selection for European extension cords directly determines their electrical safety, durability, and environmental adaptability. Their core material system is meticulously designed to meet stringent EU regulations.
1. Insulation and Sheath Material Engineering
PVC (polyvinyl chloride) formulation technology: As the most commonly used material, its formulation must achieve a balance of flame retardancy, flexibility, and aging resistance.
Flame retardancy: It must pass IEC 60332-1 (single-cord vertical burn test) and the more stringent IEC 60332-3 (bundled burn test). Flame retardant systems typically utilize composite flame retardants, such as aluminum hydroxide (ATH) and magnesium hydroxide (MDH), which work synergistically during combustion. During combustion, they decompose to absorb heat and release water vapor, diluting the combustible gases. The oxygen index (OI) is typically required to be above 32% (ASTM D2863).
Aging Resistance and Mechanical Properties: Plasticizers with good migration resistance (such as DINP and DOTP) should be selected to prevent brittleness after prolonged use. Anti-aging agents (such as carbon black) must effectively resist UV degradation. Tensile strength requirements are generally ≥15 MPa, and elongation at break ≥150% (EN 50363 standard).
Alternative Material Applications:
Low Smoke Zero Halogen (LSZH) materials are primarily used in locations with stringent fire safety requirements, such as subways, airports, and data centers. They are based on polyolefins (such as EVA) and flame retardants such as ATH/MDH. During combustion, smoke density and light transmittance must be >60% (IEC 61034), and gas corrosivity (pH and conductivity) must comply with EN 50267-2-2.
Rubber materials are used in heavy-duty industrial extension cords (such as the H07RN-F structure). They offer excellent oil resistance, cold resistance (down to -40°C), and mechanical crushing resistance (compliant with the EN 60811 series of tests).
2. Conductor Metal Selection and Treatment
Oxygen-Free Copper (OFC): Purity ≥ 99.95%, conductivity ≥ 101% IACS. Its extremely low oxygen content (<0.001%) prevents hydrogen embrittlement and ensures conductor stability after long-term use.
Plating Process:
Nickel Plating on Pins/Sleeves: The nickel layer is typically 3-5μm thick (according to EN 50525-1). It primarily provides hardness, wear resistance, and protects the base material from oxidation. The underlying copper or brass base material must maintain good elasticity.
Tin Plating on Internal Copper Core: In high-humidity industrial environments, tin plating is often used on copper conductors to effectively prevent increased contact resistance caused by sulfidation or oxidation and enhance solderability.
3. Structural Design and Safety Mechanisms
Double Insulation System: Many European extension cords utilize a "double insulation" design, consisting of basic insulation (PVC layer on the conductor) plus supplementary insulation (either the overall outer sheath or an internal insulation structure). These products do not require a ground wire (only two conductors) and are marked with a "U" (circular) symbol. They comply with EN 60309 and provide increased safety redundancy.
Strain relief: A flexible "strain relief" or internal clamping device, typically injection-molded, is formed at the interface between the cable and the plug/socket. This meets the bending test requirements of EN 60799 and prevents internal wire breakage due to repeated bending.
III. Systematic Analysis of Application Scenarios and Load Management
Selecting an extension cord is a systematic project, requiring a comprehensive decision based on load characteristics, environmental conditions, and safety regulations.
1. Load Type and Characteristics Analysis
Resistive loads: Such as incandescent lamps and electric heaters. They offer stable current and low inrush current, making selection relatively simple; they only need to meet the rated power.
Inductive loads: Such as motor tools (electric drills, compressors) and refrigerators. Starting (inrush) currents can reach 5-7 times the rated current and last for hundreds of milliseconds. Cables (typically with a sufficient cross-sectional area) and connectors (to avoid arc erosion) must be selected to withstand these brief overloads.
Capacitive loads: Such as switching power supplies (computers, mobile phone chargers). At power-on, a large capacitor charging current (inrush) occurs. Although this surge lasts only a short time, it still impacts connector contacts.
Non-linear loads: Such as inverters and LED driver power supplies. These loads generate high-order harmonics (especially the third harmonic), potentially causing the neutral current to exceed the phase current. For extension cables with multiple holes, this factor must be fully considered, and a design with a thicker neutral conductor cross-section should be selected.
2. Professional Selection Guide for Specific Environments
Industrial Workshops/Construction Sites:
Cable Type: Heavy-duty rubber-sheathed cable (such as H07RN-F) must be used. Its oil resistance, mechanical crushing resistance, and weather resistance (-25°C to +60°C) far surpass those of PVC.
Protection Rating: At least IP67, protecting against the intrusion of coolant, metal debris, and dust.
Additional Features: Integrated RCD (Residual Current Device) and overcurrent protection are best practices.
Data Centers/Computer Rooms:
Flame Retardant Requirements: LSZH cable is mandatory to prevent toxic smoke and corrosive gases from damaging precision equipment and hindering evacuation in the event of a fire.
Performance Requirements: Cables must have low inductance and low impedance to ensure voltage stability. These cables are often accompanied by a customized PDU (power distribution unit) from manufacturers such as Cixi Lianou Electrical Appliance Co., Ltd.
Medical Facilities:
Standard Compliance: Must meet the EN 60601-1 safety standard for medical electrical equipment. This standard has extremely strict regulations for earth leakage current and patient leakage current (typically <0.1mA).
Structural Design: Plugs and sockets are typically different colors or shapes to prevent accidental plugging into non-medical circuits.
Outdoor and Temporary Events:
Mechanical Protection: Cables should have a highly resilient outer sheath and may include an additional armor layer.
Visibility and Safety: Cables should be brightly colored (orange or yellow) and equipped with 30mA high-sensitivity RCDs throughout to prevent electric shock from moisture.
Seasonal Adaptability: In cold regions, ensure that the cable material does not become brittle at low temperatures.
3. Engineering Principles of Load Management
Derating: Prolonged operation at full load is strictly prohibited. The 80% rule is commonly followed in engineering. This means that for a 16A extension cord, the recommended continuous load should not exceed 12.8A (approximately 2940W), allowing for transient overload and heat dissipation.
Length and Voltage Drop: Cables have impedance, causing voltage to drop with increasing length. According to IEC 60364-5-52, voltage drop should generally be less than 3%. The calculation formula is: Voltage drop ΔU = (ρ * L * I * 2) / A (ρ is resistivity, L is length, I is current, and A is cross-sectional area). Longer transmission distances require a larger cross-sectional area.
Thermal Management: Extension cords should be fully extended. Coiling them creates inductance and hinders heat dissipation, leading to heat accumulation and a fire risk. Sufficient space should be left around them for air circulation.
IV. Manufacturing Process and Quality Control
Take Cixi Lianou Electrical Appliance Co., Ltd., a key enterprise in Zhejiang Province, China, as an example. Its production process embodies high industry standards:
Injection Molding Process
Plug housings are manufactured using a fully automatic injection molding machine (clamping force ≥ 800T), with mold temperature accuracy controlled to ±1°C to ensure dimensional compliance with EN 50075 specifications.
Cable Assembly
The wires and connectors are connected using ultrasonic welding, with resistance values 35% less than mechanical crimping. The production line is equipped with a high-voltage tester (1500V/60s) and a ground continuity tester (resistance <0.1Ω).
Quality Inspection System
100% power-on test (load 1.25 times the rated current for 1 hour).
Random inspection items include a ball pressure test (125°C/1 hour), a bend test (10,000 cycles), and a heat resistance test (70°C/7 days).
